All about EMI filters

Power converters are the unsung heroes of modern electronics, quietly and efficiently transforming electrical energy to power everything from smartphones to electric vehicles. But there’s a hidden challenge in their design: electromagnetic interference (EMI). EMI is essentially electrical noise generated by the rapid switching of power semiconductor devices within the converter. This noise can disrupt nearby electronics and must be mitigated to meet regulatory standards.

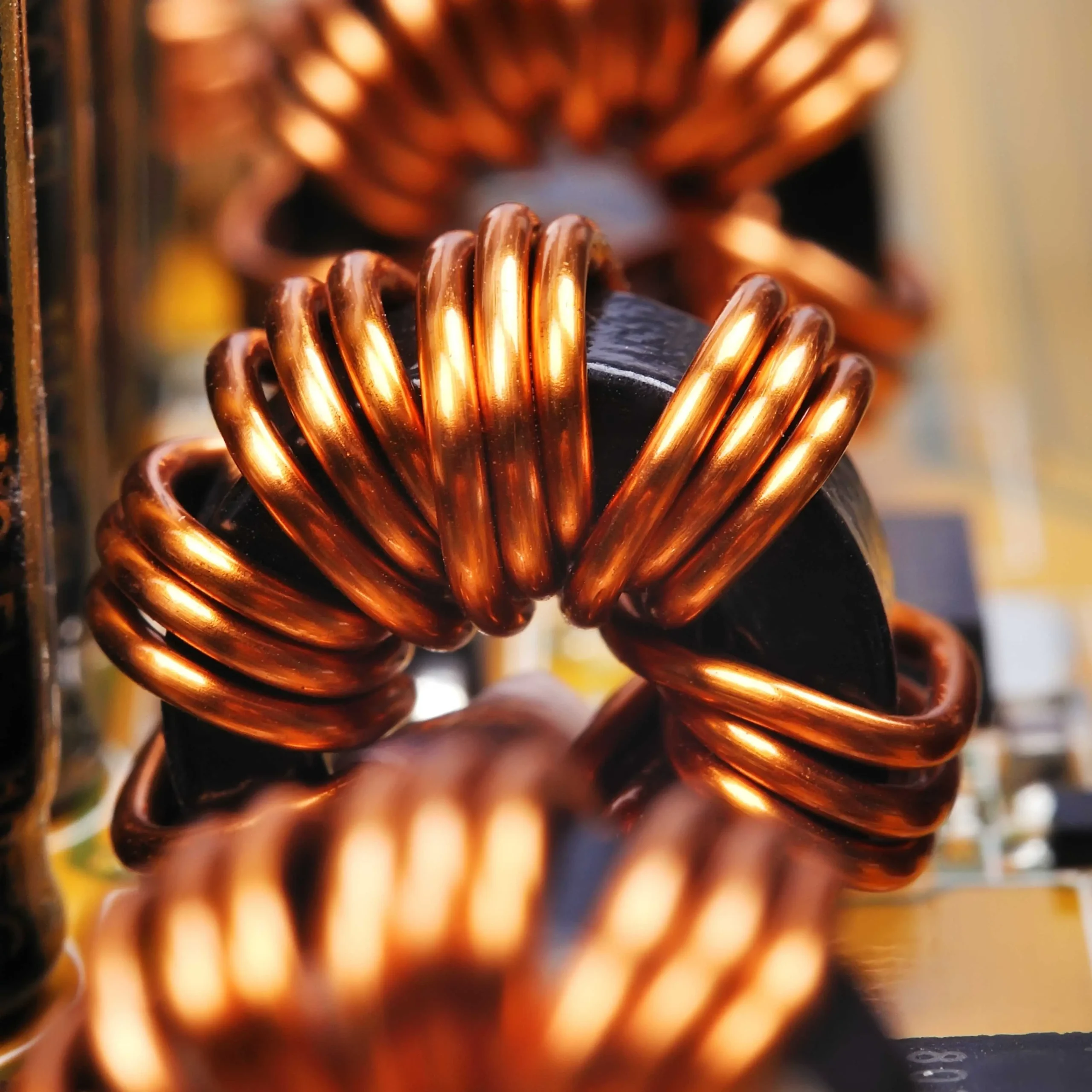

Traditionally, bulky passive EMI filters are used to suppress this unwanted noise. These filters, typically composed of inductors and capacitors, can occupy a significant portion of the converter’s volume – up to 30% in some cases. This is a major obstacle, especially as the demand for smaller, more power-dense converters grows.

Enter the Active EMI Filter (AEF)

AEFs offer a promising solution to this challenge. By actively canceling EMI noise, AEFs can significantly reduce the size and weight of passive filters, leading to smaller and lighter power converters. Imagine shrinking that bulky passive filter to a fraction of its size – that’s the power of AEF technology!

How AEFs Work

AEFs consist of three main components:

• Noise-Sensing Circuit: Detects the EMI noise present in the system. It can sense either the noise voltage or noise current.

• Noise-Processing Circuit: Amplifies and processes the sensed noise signal, preparing it for cancellation. This often involves an amplifier and may include a digital signal processor (DSP) or field-programmable gate array (FPGA).

• Noise-Injection Circuit: Injects a carefully crafted signal into the system to cancel the detected EMI noise. This can be achieved by injecting a cancellation current or a cancellation voltage.

AEFs can be implemented with either feedforward or feedback control:

• Feedforward Control: The injected cancellation signal is directly derived from the sensed noise signal, aiming for unity gain. This method is simpler but sensitive to component tolerances.

• Feedback Control: The injected signal is continuously adjusted based on the remaining noise level at the output. This offers robustness against component variations but requires a high-gain feedback loop, which can introduce stability challenges.

Types of AEFs and Their Applications

AEFs can be designed to target different types of EMI noise:

• Common-Mode (CM) Noise: Noise that flows in the same direction on all lines of a power converter relative to ground.

• Differential-Mode (DM) Noise: Noise that flows between two lines of a power converter.

AEFs have been successfully implemented in a wide range of power converters, including:

• DC-DC Converters: These are used to step up or step down DC voltage levels, commonly found in applications like laptops, smartphones, and electric vehicle battery management systems.

• AC-DC Converters: These convert AC power from the grid to DC power, widely used in power supplies for electronic devices and battery chargers.

• Inverters: These convert DC power to AC power, crucial for applications like motor drives in electric vehicles, industrial automation, and renewable energy systems.

Benefits of Active EMI Filters

• Reduced Size and Weight: AEFs enable significant reduction in the volume and weight of passive EMI filters, leading to more compact and lightweight power converters.

• Improved Performance: AEFs can offer higher attenuation of EMI noise compared to passive filters, especially at higher frequencies.

• Enhanced Flexibility: AEFs can be more easily tuned and adapted to different operating conditions and noise characteristics.

Challenges and Considerations

• Complexity: Designing and implementing AEFs can be more complex compared to traditional passive filters, requiring specialized knowledge and expertise.

• Stability: AEFs with feedback control can potentially become unstable, necessitating careful stability analysis and compensation techniques.

• Power Loss: AEFs introduce additional power losses due to the active components and auxiliary power supplies, although these losses are often relatively small compared to the converter’s overall power.

Conclusion

Active EMI filters represent a powerful tool for engineers striving to design smaller, lighter, and more efficient power converters. Despite some design challenges, the benefits of AEFs, especially in applications where size and weight are critical constraints, make them a technology worth considering.
